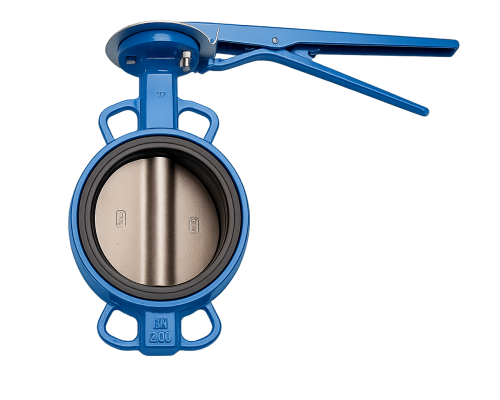

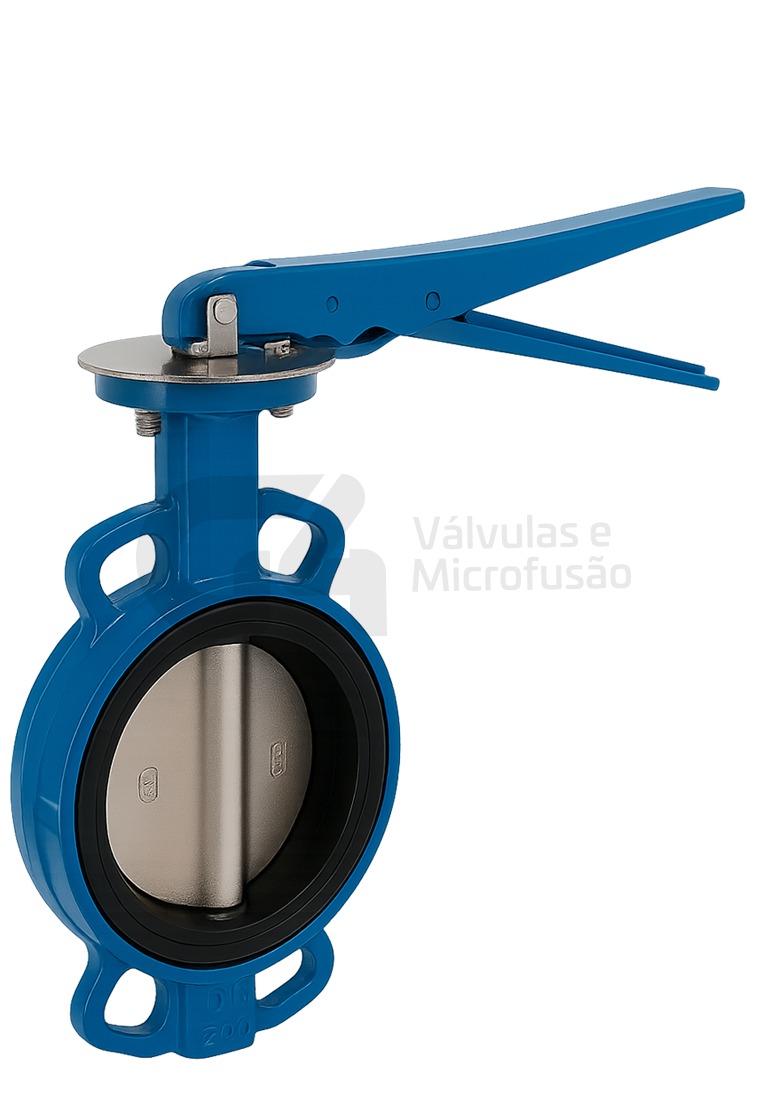

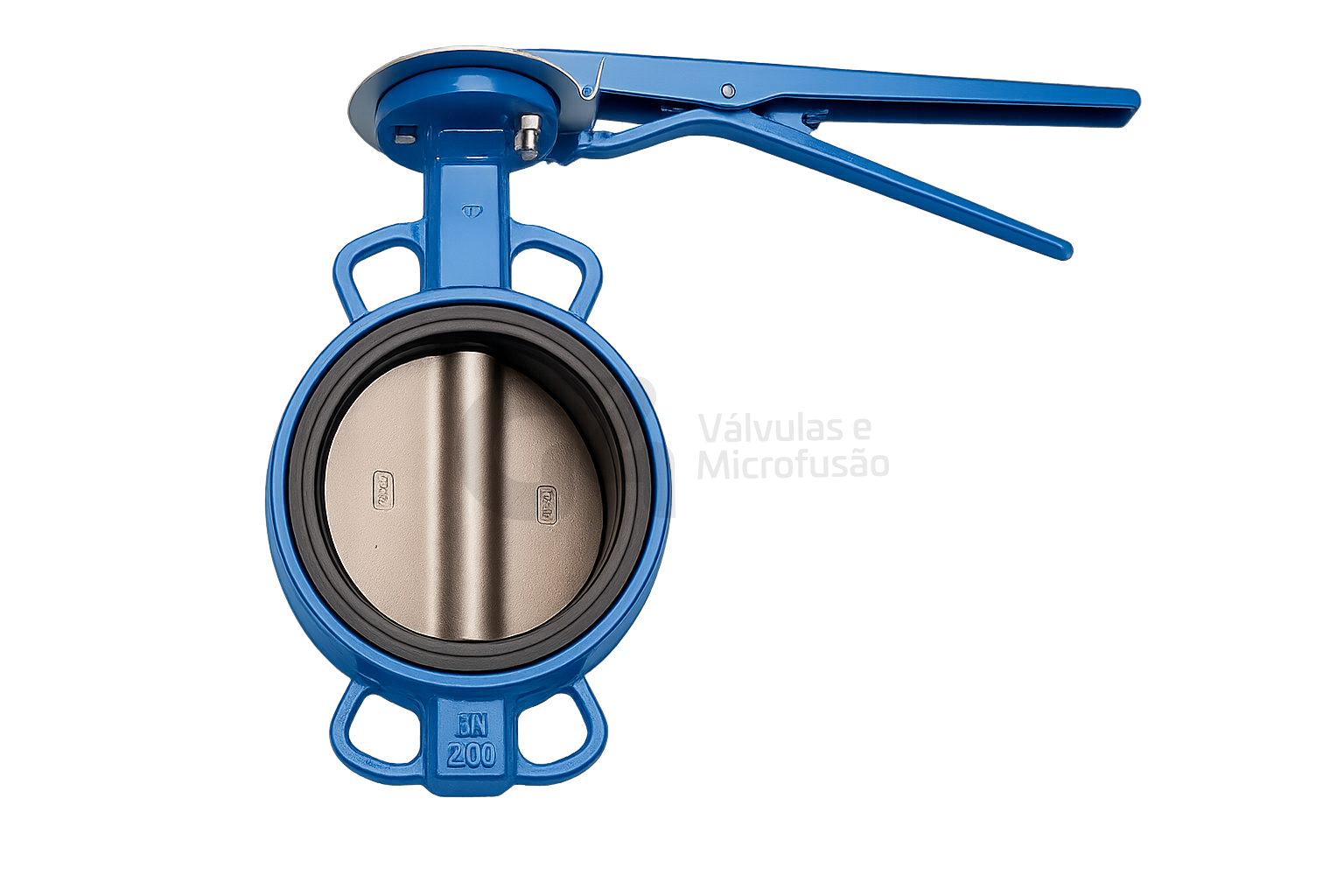

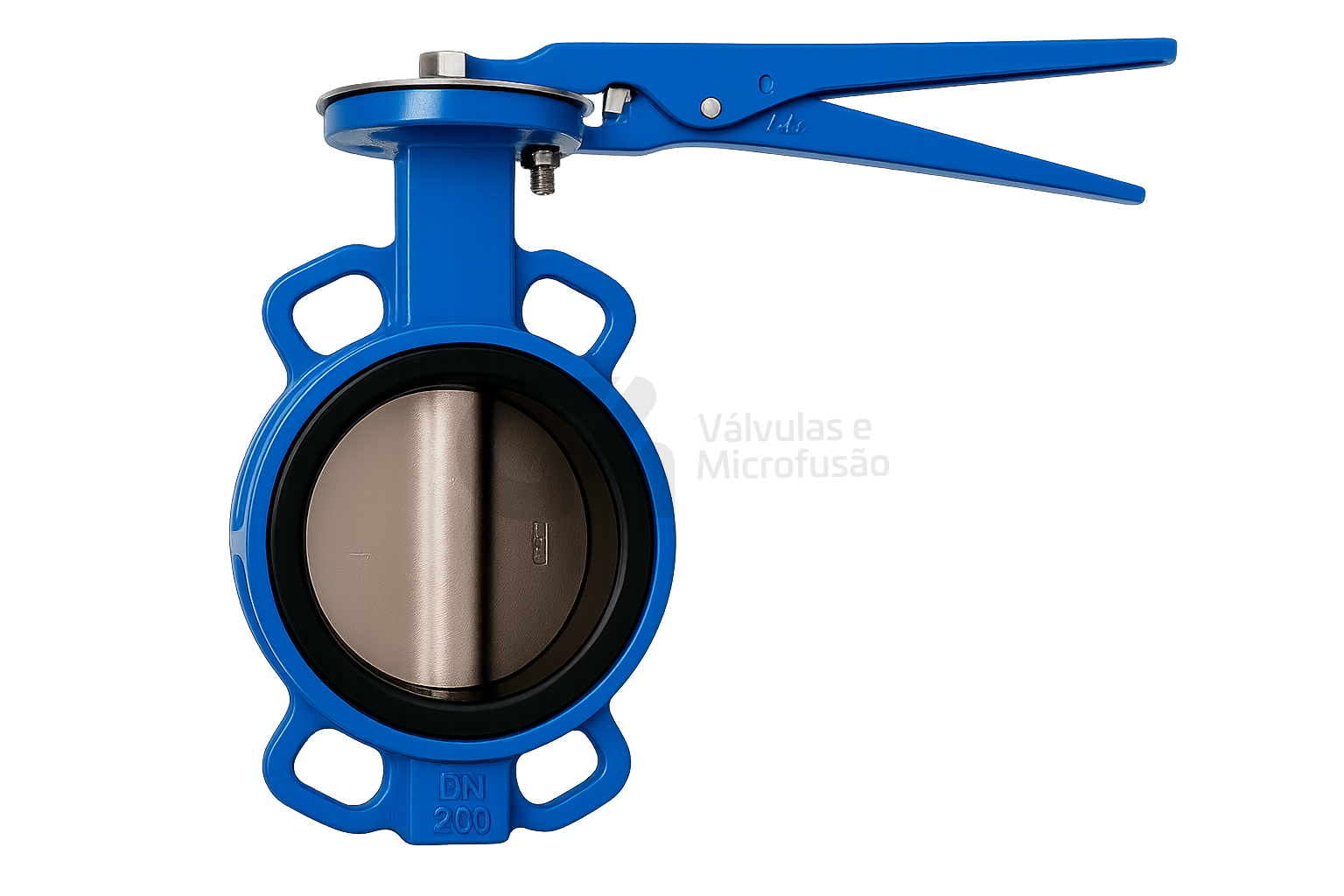

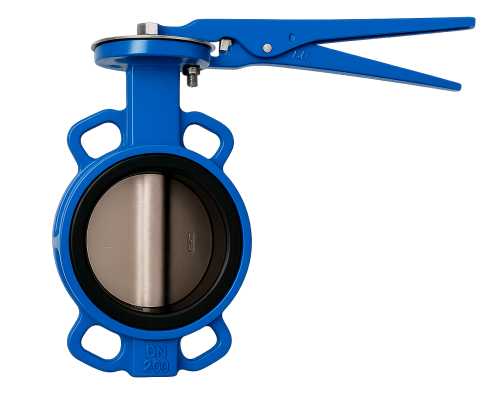

Válvula Borboleta Wafer
Descrição Completa
| Nº | Descrição | S100 | S200 |
|---|---|---|---|
| 1 | Corpo | Ferro Nodular | Ferro Cinzento |
| 2 | Disco | CF8 | Nodular + Níquel |
| 3 | Sede | EPDM / BUNA-N | EPDM / BUNA-N |
| 4 | Haste | 304 | 420 |
| 5 | Bucha | PTFE | PTFE |
| 6 | O’ring | EPDM | EPDM |
Dimensões
|
BITOLA POL. |
DN | A | B | C | D | E | ØF | ØG | H | ØI | ØJ | K° | Torque (N.m) | Peso (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.1/2" | 40 | 66,0 | 105,0 | 21,0 | 36,0 | 11,0 | 50,0 | 98,6 | 215,0 | N-4 Ø16 | 7,5 | 45,0 | 13,0 | 2,6 |
| 2" | 50 | 70,0 | 149,0 | 21,0 | 45,0 | 11,0 | 50,0 | 120,65 | 215,0 | N-4 Ø19 | 7,5 | 45,0 | 13,0 | 2,9 |
| 2.1/2" | 65 | 87,0 | 165,0 | 21,0 | 48,0 | 11,0 | 50,0 | 139,7 | 215,0 | N-4 Ø19 | 7,5 | 45,0 | 21,0 | 3,6 |
| 3" | 80 | 101,0 | 165,0 | 21,0 | 49,0 | 11,0 | 50,0 | 152,4 | 215,0 | N-4 Ø19 | 7,5 | 45,0 | 28,0 | 3,9 |
| 4" | 100 | 110,0 | 180,0 | 24,0 | 55,0 | 11,0 | 70,0 | 190,5 | 260,0 | N-4 Ø19 | 10,0 | 22,5 | 34,0 | 5,5 |
| 5" | 125 | 124,0 | 205,0 | 27,0 | 58,0 | 14,0 | 70,0 | 215,9 | 260,0 | N-4 Ø22,4 | 10,0 | 22,5 | 65,0 | 6,2 |
| 6" | 150 | 137,0 | 219,0 | 27,0 | 59,0 | 14,0 | 70,0 | 241,3 | 260,0 | N-4 Ø22,4 | 10,0 | 22,5 | 72,0 | 8,0 |
| 8" | 200 | 173,0 | 252,0 | 27,0 | 64,0 | 17,0 | 102,0 | 298,45 | 363,0 | N-8 Ø22,4 | 12,0 | 22,5 | 161,0 | 14,3 |
| 10" | 250 | 204,0 | 283,0 | 32,0 | 70,0 | 22,0 | 102,0 | 361,95 | 363,0 | N-8 Ø25,4 | 12,0 | 15,0 | 260,0 | 21,8 |
| 12" | 300 | 245,0 | 332,0 | 32,0 | 80,0 | 24,0 | 102,0 | 431,8 | 363,0 | N-8 Ø25,4 | 12,0 | 15,0 | 370,0 | 30,8 |
Componentes
