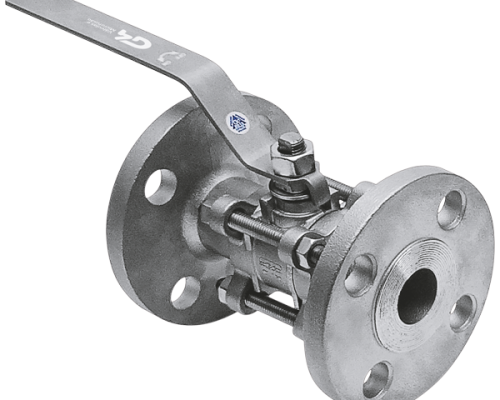

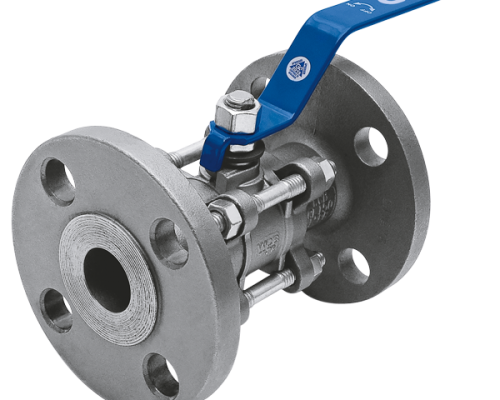

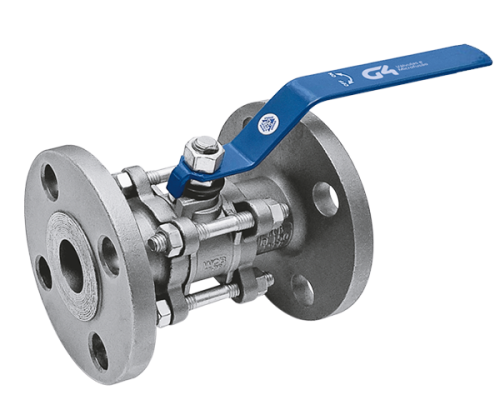

Flanged Tripartite Ball Valve - Class 150
Description
Tripartite Ball Valve
Flanged - Class 150
Class 150 according to ASMEB16.34 construction
Expulsion proof rod
Floating mount spheres
Material
ASTM A216 Gr. WCB
ASTM A351 Gr. CF8 (AISI 304)
ASTM A351 Gr. CF8M (AISI 316)
SPECIAL LEAGUES: upon request
Fences
PTFE TP and PTFE TR
Dimensions
Reduced Passage CL150
| DN | Flange Holes | A (mm) | B (mm) | C (mm) | D (mm) | Mass (Kg) |
| ½” | 15,7 (4) | 64,0 | 113,0 | 108,0 | 88,9 | 1,5 |
| ¾” | 15,7 (4) | 70,0 | 113,0 | 117,3 | 98,5 | 2,1 |
| 1” | 15,7 (4) | 75,0 | 161,0 | 127,0 | 108,0 | 3,5 |
| 1.1/2” | 15,7 (4) | 106,0 | 177,0 | 165,1 | 127,0 | 5,7 |
| 2” | 19 (4) | 110,0 | 177,0 | 177,8 | 152,4 | 8,5 |
Full Passage CL150
| DN | Flange Holes | A (mm) | B (mm) | C (mm) | D (mm) | Mass (Kg) |
| ¾” | 15,7 (4) | 75,0 | 161,0 | 117,3 | 98,5 | 2,3 |
| 1” | 15,7 (4) | 95,0 | 177,0 | 127,0 | 108,0 | 3,5 |
| 1.1/2” | 19 (4) | 110,0 | 177,0 | 163,0 | 127,5 | 6,5 |
